本產品除了重新開模修正舊產品的小問題之外，主要結構調整、注意事項包括：

1，飛鏢固定面改為基本對稱，增大穩定面寬度，令飛鏢前後運動過程中更穩定，減少左右搖擺。之前不敢改動該結構是因為玩家有外購NAPS需求，需要適配Marui Spec。由於新產品提供可調版本，為保證產品性能及設計完整性，新推嘴、飛鏢、飛鏢擋3個零件只能配套使用，均不保證和GM舊產品、Marui Spec兼容或穩定發揮，請勿混用！

2，同步增大飛鏢推嘴密封面面積，切換氣流後前向密封性能更佳，模具製作及注塑全流程均由GM負責，模具質素和產品質素更高。

3，新產品推嘴主體提供2個版本，可調與不可調。不可調版本垂直替代舊v3.5版本，除調節功能外，所有參數均與可調版本一致。適合追求極致穩定的玩家。

4，兩個飛鏢區別純粹是可調範圍的區別，詳細測試數據請查看後邊的數據表格。（GM承諾表格數據的真實性和可復現性）

5，調節機構鎖定片是需要特定方法安裝的小配件，正常使用無需拆解。好奇或手痕唔好怨。

6，飛鏢接氣位置設計上已做最大化角度和順滑處理，追求產品出廠狀態下無需任何修改就可以達到最高表現，所以使用時請注意配合氣體、溫度、飛鏢彈簧、彈丸、槍管內徑與長度等參數，令閣下的玩具時刻符合當地法律要求，切勿以身試法！

7，本產品基於Marui / GM MWS開發，所有數據復現性、穩定性只針對以上兩個品牌的產品。對市面上其他品牌的產品適配性不作任何保證。

In addition to re-tooling the mold to address minor issues of the previous product, the primary structural adjustments and important considerations are as follows:

1. The rocket valve fixing surface has been redesigned to be essentially symmetrical, with an increased width for the stabilization surface. This enhances stability during the forward and backward motion of the rocket valve, minimizing lateral wobble. Previously, this structure was not altered to maintain compatibility with the Marui specification, accommodating users' potential need for purchasing external NAPS. As the new product offers an adjustable version, to ensure optimal product performance and design integrity, the new nozzle, rocket valve, and rocket valve stopper are designed as a matched set. They are not guaranteed to be compatible with older Guns Modify products or the Marui specification, and mixed usage is strictly discouraged, as stability cannot be assured.

2. The sealing surface area between the rocket valve and the nozzle has been synchronously increased. This improvement enhances forward sealing performance after airflow redirection. Both the mold manufacturing and the entire injection molding process are handled by Guns Modify, resulting in higher mold and product quality.

3. The main body of the new product's nozzle is available in two versions: adjustable and non-adjustable. The non-adjustable version serves as a direct, drop-in replacement for the old v3.5 version. Apart from the adjustability function, all other parameters are identical to the adjustable version. It is suitable for users pursuing ultimate stability.

4. The difference between the two rocket valves lies purely in their range of adjustability. Please refer to the subsequent data table for detailed test data. (Guns Modify guarantees the authenticity and reproducibility of the data in the table.)

5. The adjustment mechanism locking plate is a small component that requires specialized installation procedures. Disassembly is unnecessary during normal operation. If lost due to unauthorized tampering or curiosity, no complaints will be entertained.

6. The gas intake point of the rocket valve has been maximized in terms of angle and smoothed in the design. The goal is to achieve peak performance straight out of the box without requiring any modifications. Therefore, please pay attention to parameters such as the compatible gas, temperature, rocket valve spring, BBs, inner barrel diameter, and length during use. Ensure your replica complies with all local laws and regulations at all times. Do not test the law.

7. This product is developed based on the Marui /Guns Modify MWS system. All data regarding reproducibility and stability applies only to products from these two brands. No compatibility guarantees are made for products from other brands available on the market.

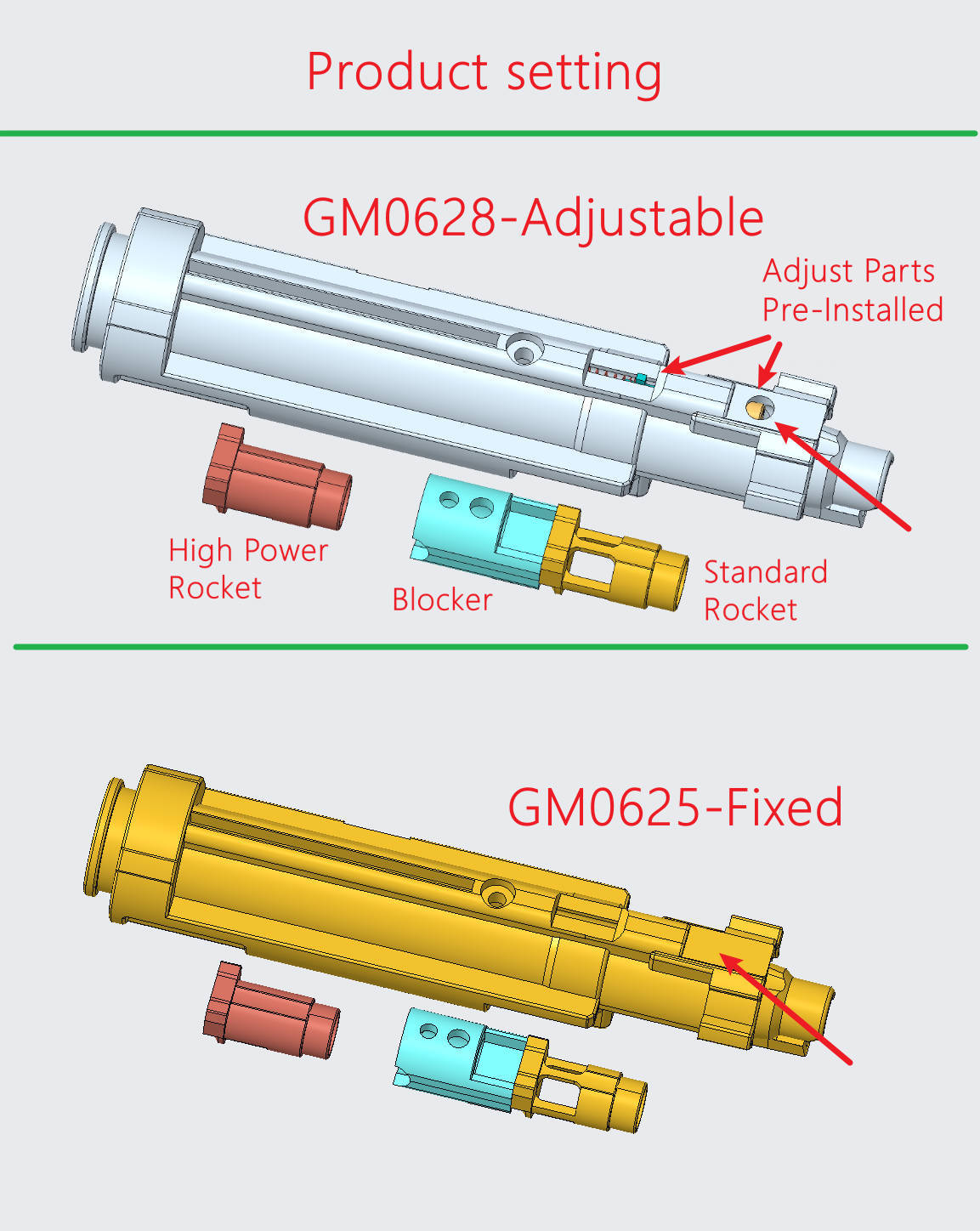

可調與不可調產品包含零件與編號區分

Adjustable vs. Non-Adjustable Product Components & Part Numbers

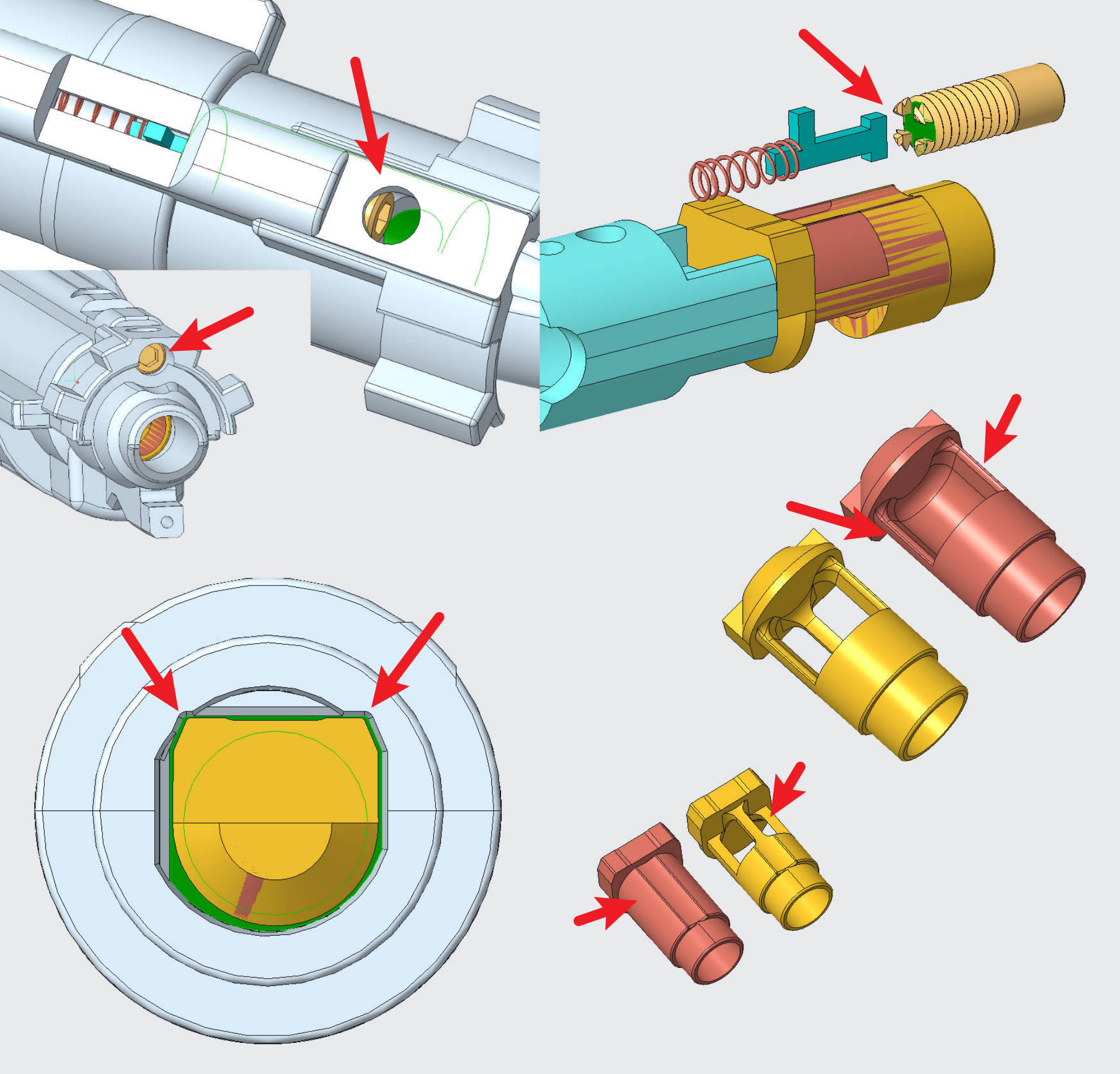

產品要點示意

Product key points illustration

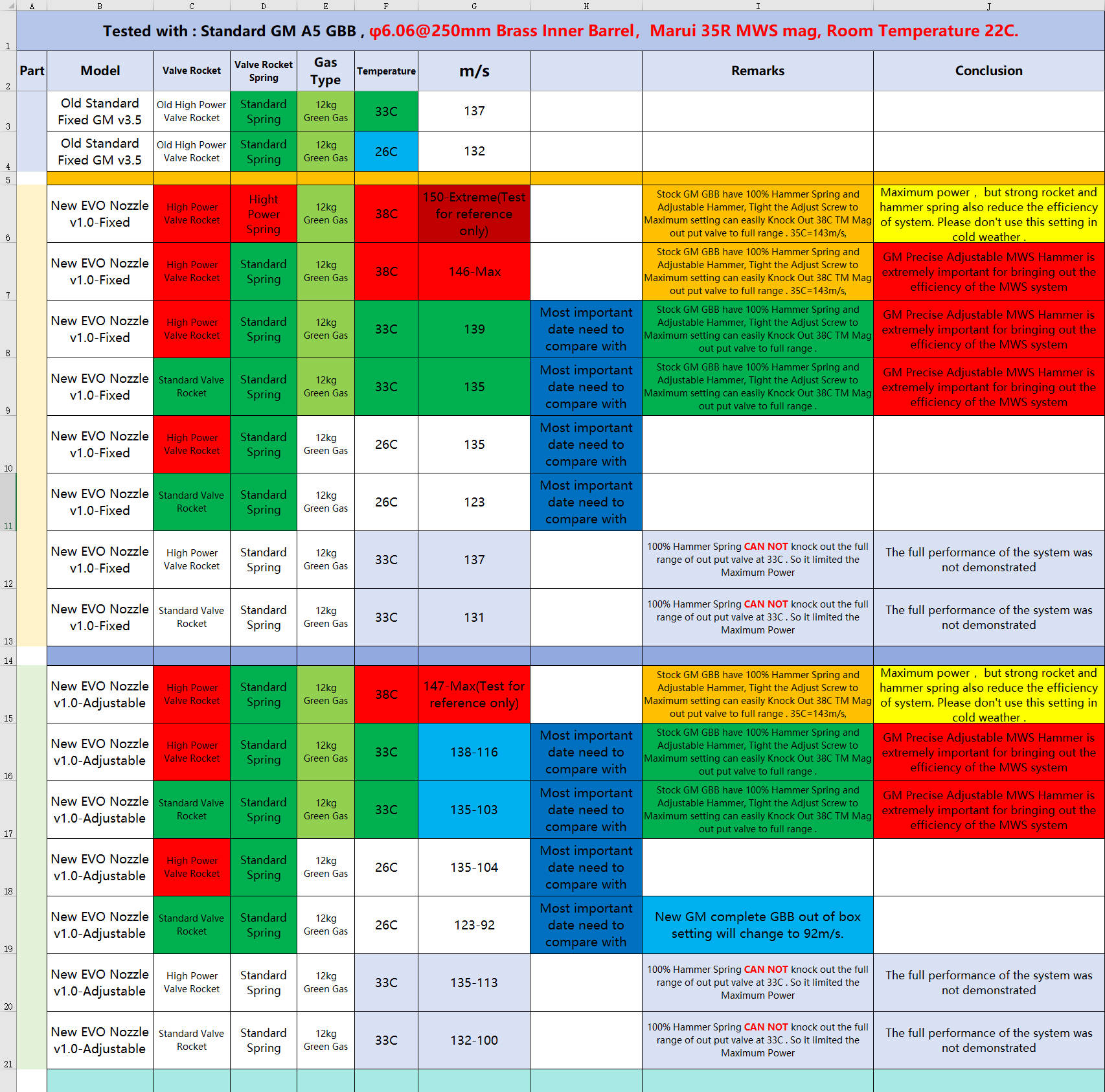

12kg test

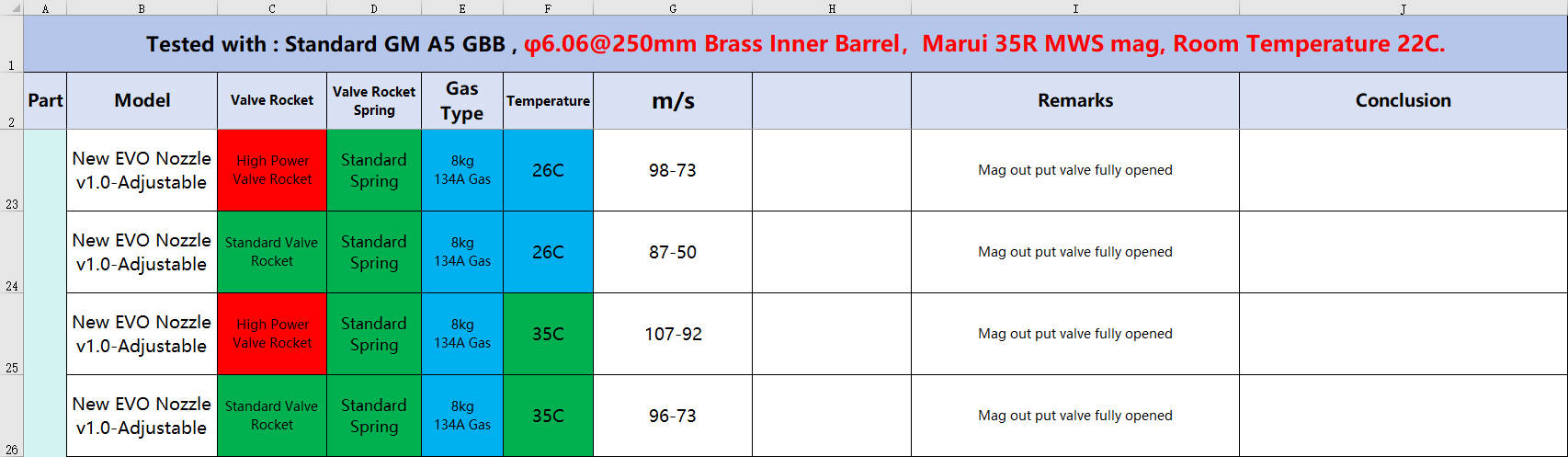

134A test
